Install Instructions – Light Bar Hood Mount

Turbo R / Pro XP / Pro R

40-42in Light Bar Hood Mount + Pod Lights

These instructions for the following RZR Models:

  • 2020+ Pro XP
  • 2022+ Turbo R
  • 2023-2024 Pro R

Please read these notes before installing

  • Light Bar Hood Mount – Inside Dimension Measurements  41.75″.  +/- 1in
  • Fits most 40-42in Light Bars

Step 1

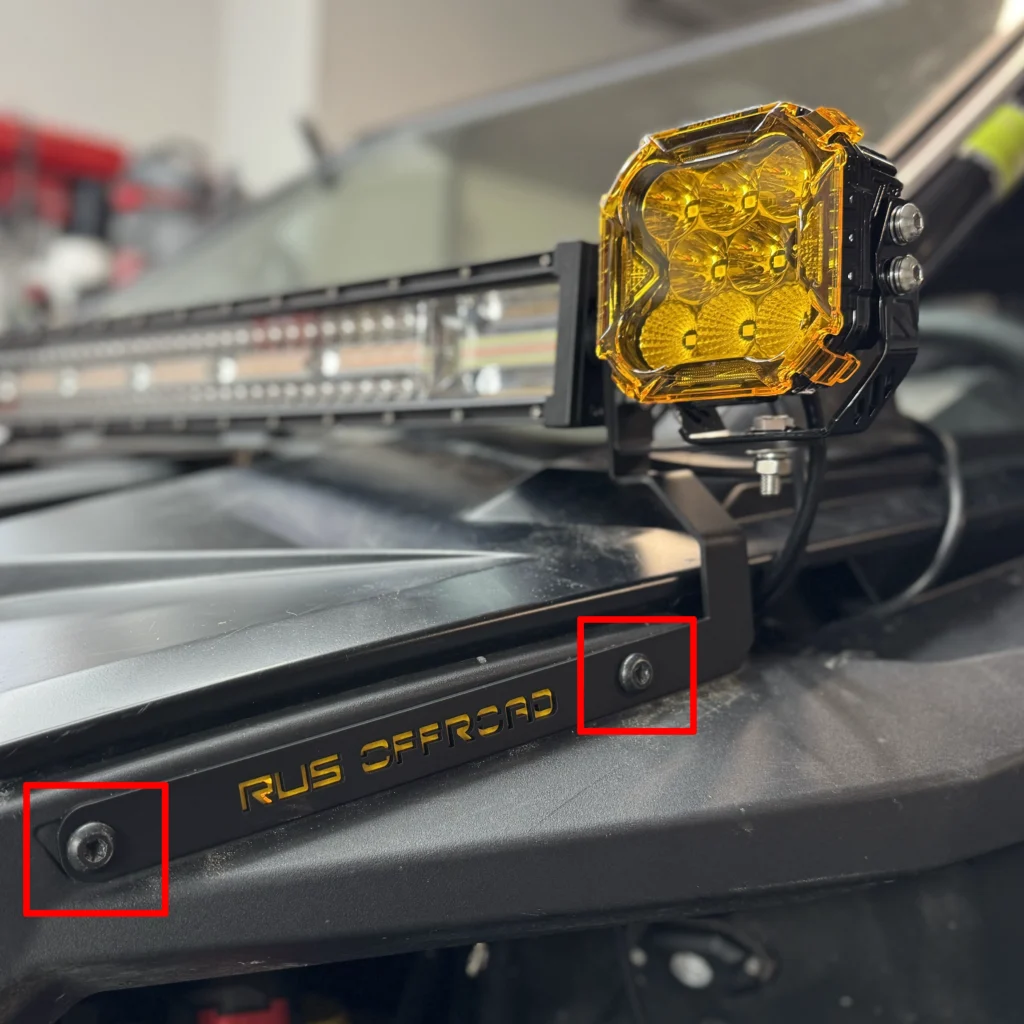

  • Remove the 2 factory T40 bolts. (Market in Red)
  • Place the light bar bracket in place and re-install T40 Bolts
  • Attach the Optional Pod Light bracket before installing the light bar

Step 2:

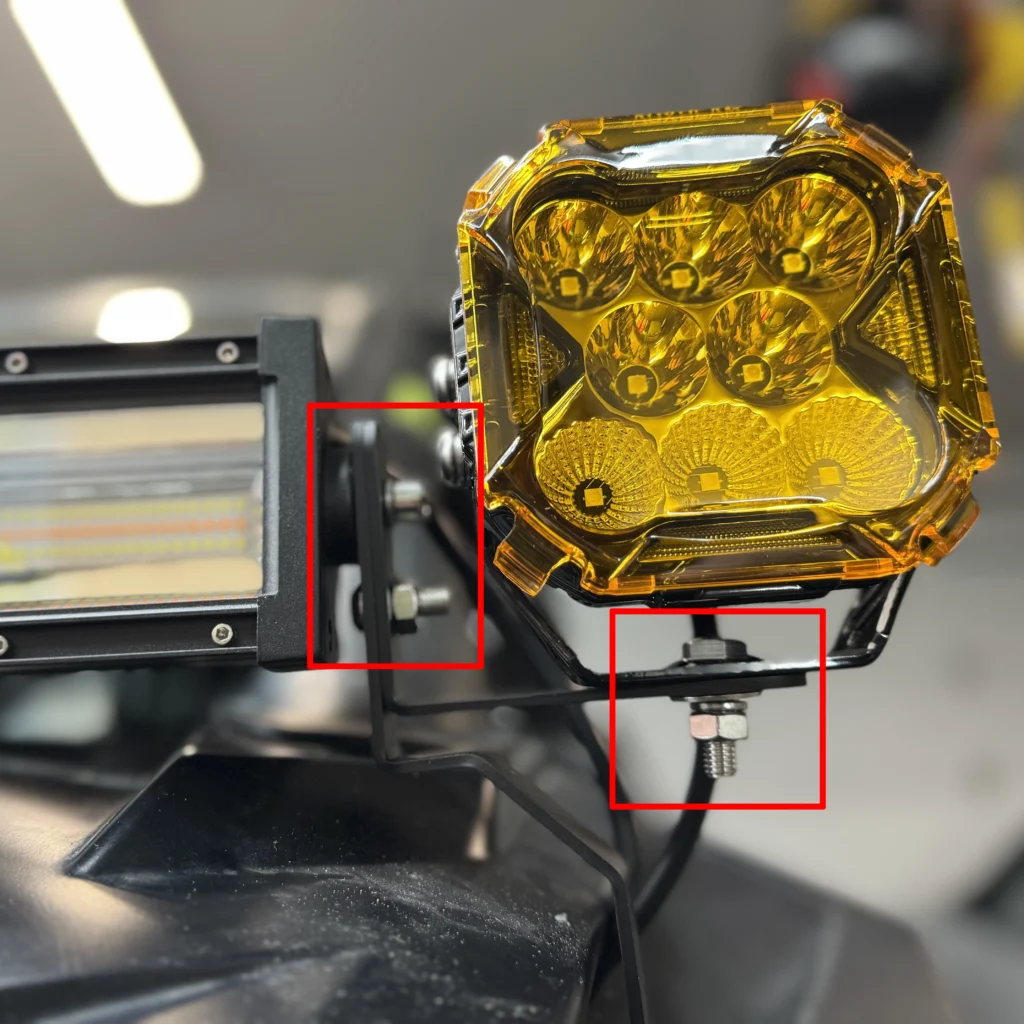

  • Attach the light bar using the factory screw that came with the light bar.
  • Install the Pod Lights
  • Run wire and follow the manufactures instructions for wiring.
