Turbo R / Pro XP / Pro S / Pro R
NOTE: The same mount can be used on either side. The anchor spacing holes on the RZR have different spacing depending on side, choose the correct slots on the mount to match up with the holes.
Depending on exact setup, rear seat upper removal may not be required. Bottoms can flip forward flat and do not need to be removed.
If you have aftermarket seats, you may need to remove the seats (we had to).
Important Notes
⚠️ Recommended Anchors: Click Here – Not Included.
⚠️ Rear Seat Removal MAY Be Required to install this mount.
⚠️ Anchors NOT Included – RUS Offroad Anchors are NOT compatible with this mount.
Step 1
Verify your mounting holes (anchors are not included)
Step 2
Remove the T40 bolt forward of the anchor holes

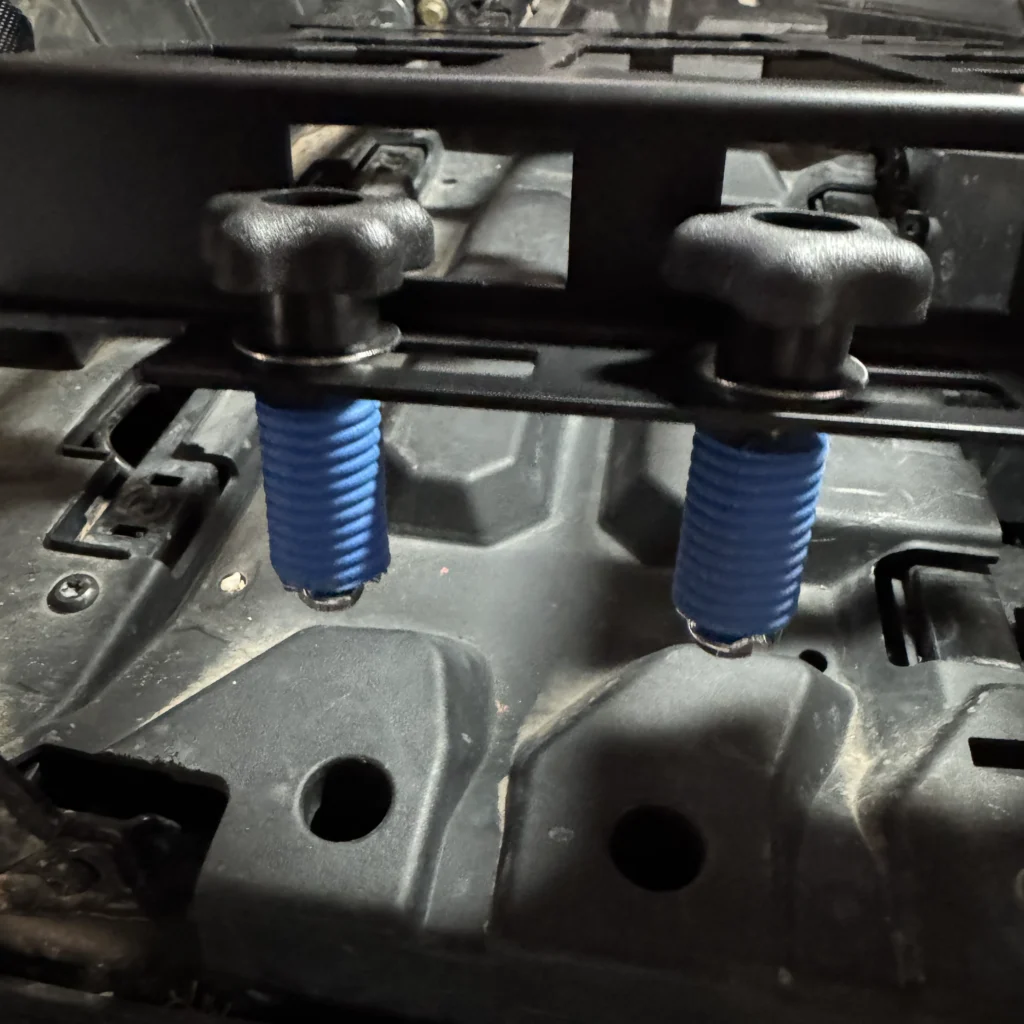

Start the anchors in the mount before inserting. Keep them loose for now.
This prevents them from falling though the holes once you insert.
Step 3

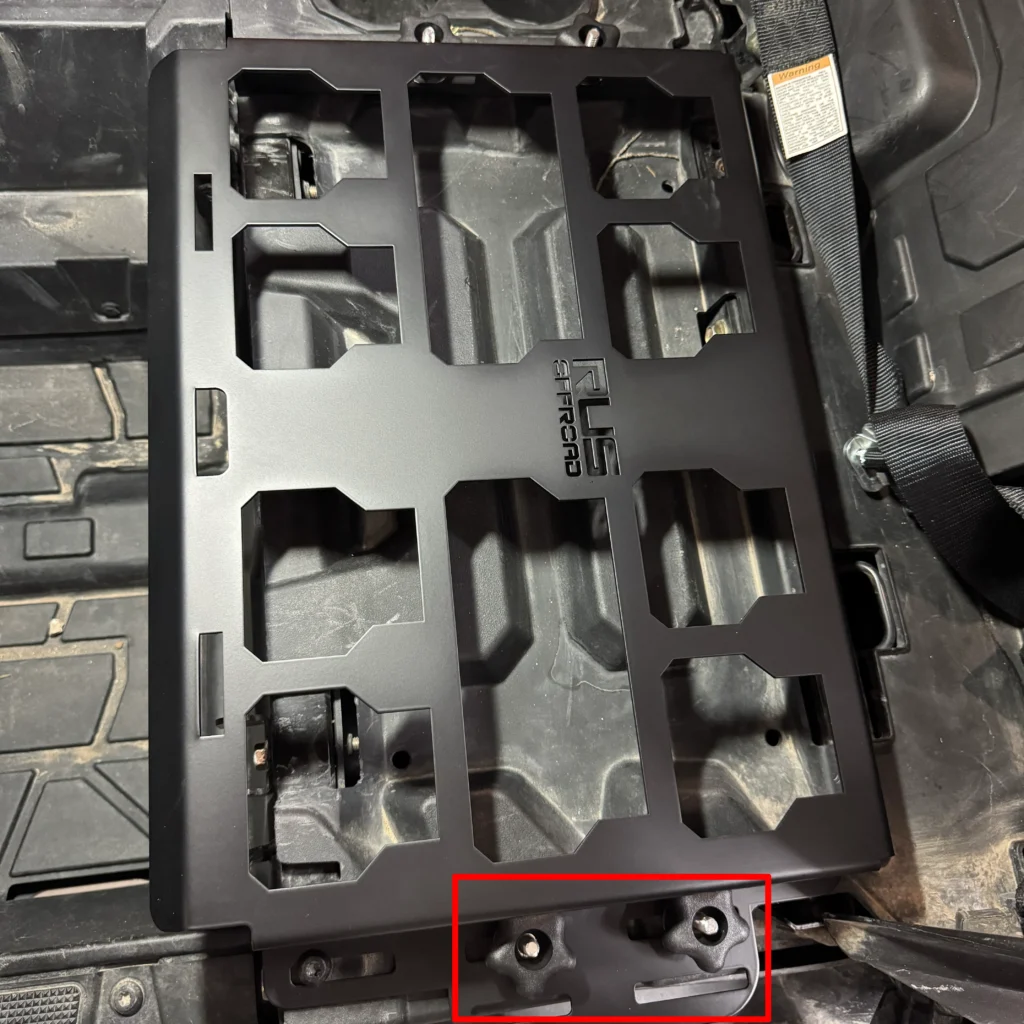

Insert the entire mount and anchors into the proper position. Be sure its sitting flat and nothing is hanging up.
Tighten the anchors down. Do not over tighten them. You can damage the anchors.
Reinstall the T-40 on the front of the mount for additional stability. (Only one side)

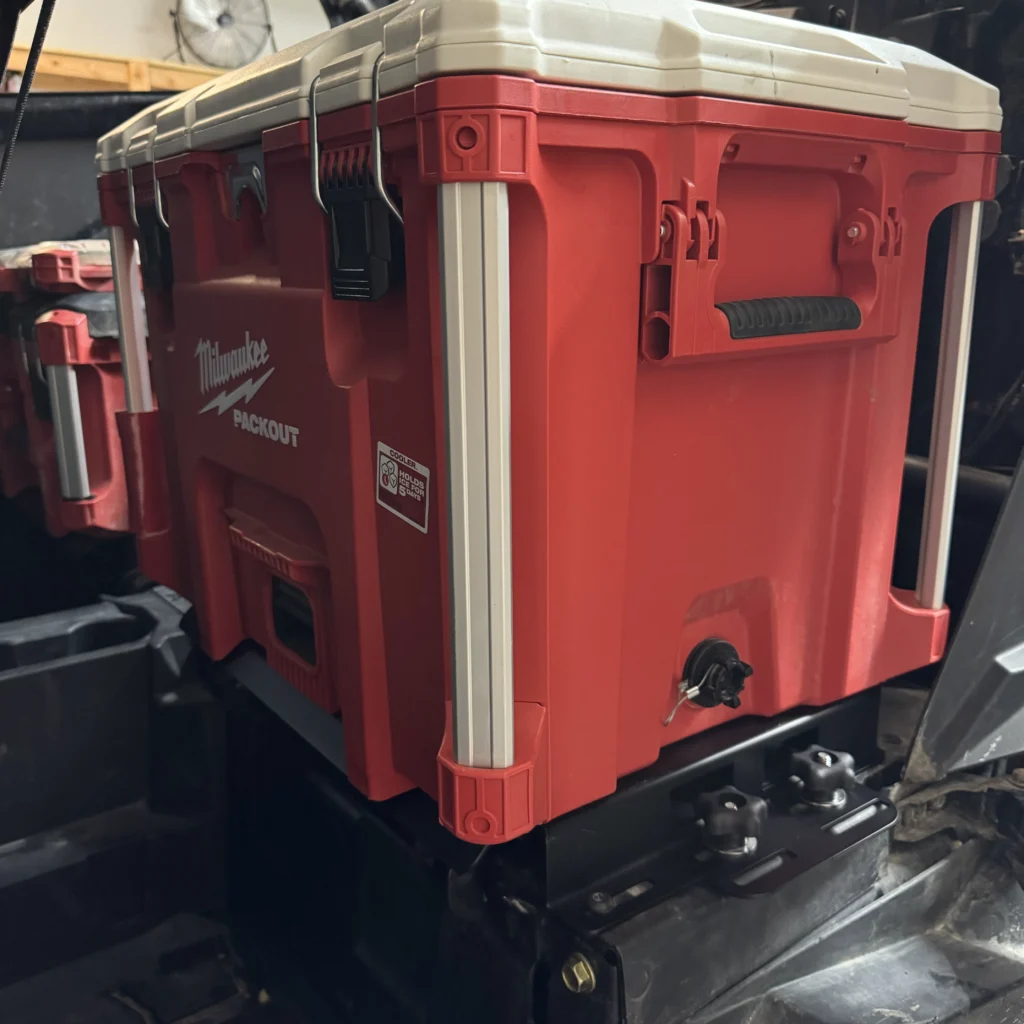

Completed
Thats it!
